Building a medical app that handles sensitive patient data requires a solid backend and an intuitive frontend. Combining SQL Server for database management with Adalo, a no-code app builder, is a practical way to achieve this. SQL Server ensures secure and efficient handling of healthcare data, while Adalo simplifies app design and deployment across web, iOS, and Android - all from a single build.
Here’s what you’ll need to get started:
- SQL Server 2025: Use Developer or Express editions for database setup.
- SQL Server Management Studio (SSMS): Manage database structure and data.
- Adalo Account: Create user-friendly app interfaces with drag-and-drop tools.
- HIPAA Compliance: Implement encryption, audit logs, and role-based access control to protect sensitive data.
Key Steps:
- Set Up SQL Server: Install SQL Server, configure security settings, and create a normalized database schema with tables for patients, doctors, appointments, and medical records.
- Design Your App in Adalo: Use Adalo’s visual editor to build screens for managing patients, scheduling appointments, and viewing medical records.
- Connect SQL Server to Adalo: Leverage tools like DreamFactory to create secure API endpoints for real-time data synchronization.
- Ensure Security: Use encryption, secure API connections, and audit trails to meet regulatory standards like HIPAA.
- Deploy Your App: Publish it as a Progressive Web App (PWA) or natively to app stores without rebuilding for each platform.
This approach reduces development time and costs while ensuring compliance and scalability. Follow these steps to create a functional, secure medical app tailored to healthcare needs.
5 Steps to Build a HIPAA-Compliant Medical App with SQL Server and Adalo
C# and SQL Server: Developing a Dental Clinic Management Web Application
What You Need Before You Start
Before diving in, you'll need the right tools and a clear understanding of healthcare data requirements. Key components include SQL Server 2025 as your database backend, SQL Server Management Studio (SSMS) to manage your databases, and an Adalo account to design your app interface. If you're dealing with patient data, compliance with regulations like HIPAA is non-negotiable.
For database setup, SQL Server offers free Developer and Express editions, while SSMS provides a robust platform for database management. On the app-building side, Adalo offers both free and paid plans, with pricing starting at $45 per month.
Planning to publish your app to mobile platforms? You'll need developer accounts. Apple's Developer Program costs $99 per year, and Google Play Console requires a one-time $25 fee. Tools like Figma or Miro can help you create wireframes to map out your app's design. To connect Adalo to SQL Server, make sure the SQL Server Browser service is running and TCP/IP is enabled in your server settings.
If your project involves Protected Health Information (PHI), security is paramount. Use Multi-Factor Authentication (MFA) and AES encryption to safeguard sensitive data. HIPAA rules also require you to maintain audit logs for six years to track data access and modifications. Structuring your SQL database in Third Normal Form (3NF) ensures strong data integrity. Additionally, confirm that any third-party tools you use meet HIPAA compliance standards.
Once you've established these essentials, you're ready to set up your technical environment.
Installing and Setting Up SQL Server

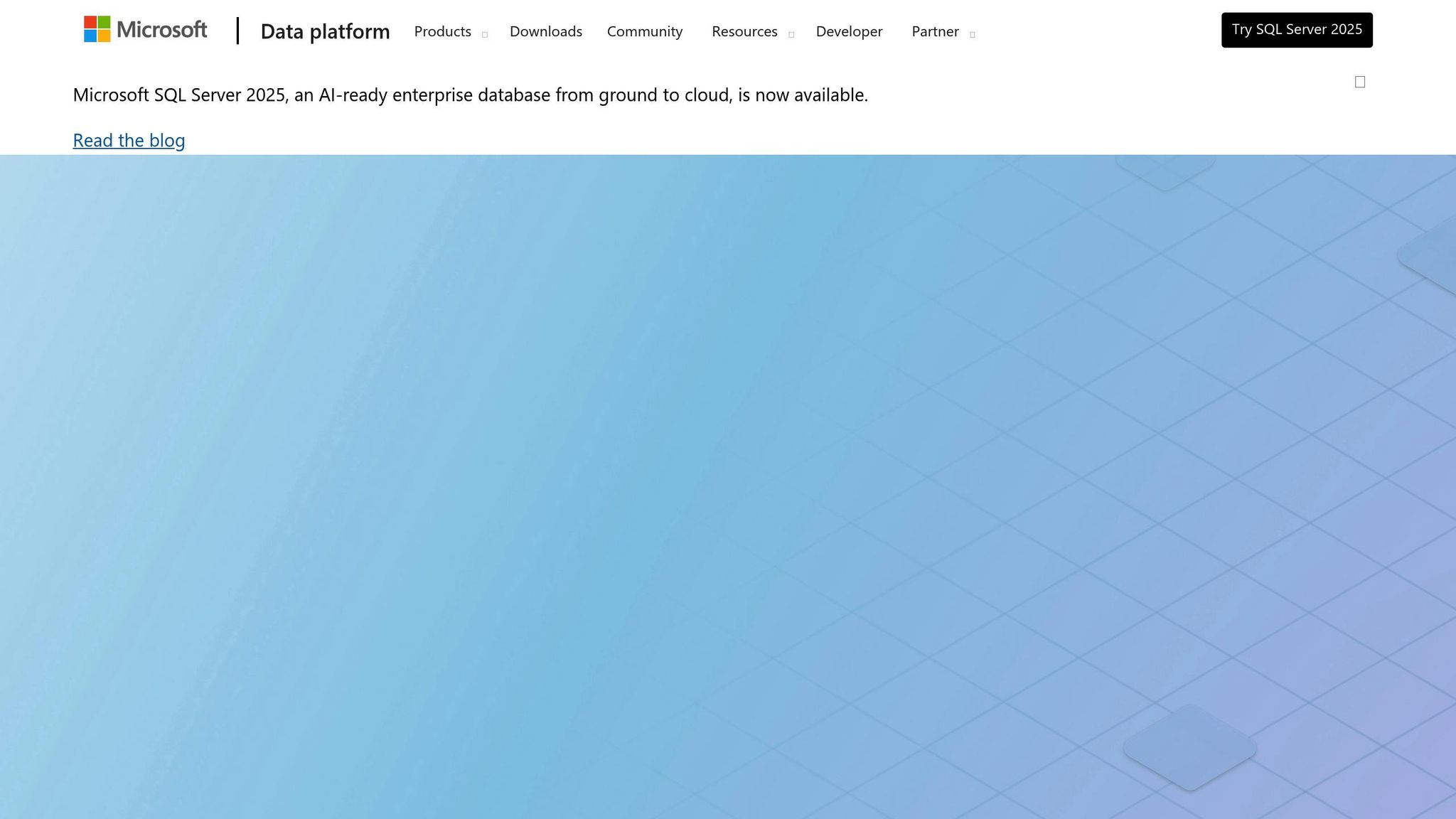

Start by downloading SQL Server 2025 from Microsoft's website. The Developer Edition is free and includes enterprise-level features, making it perfect for testing and development. For smaller production needs, the Express Edition is a cost-friendly alternative.
During installation, you'll choose an authentication mode. For healthcare applications, Windows Authentication is recommended for its robust security, leveraging your operating system's built-in protections. Be sure to note your server name during setup - it will be required later for connecting to Adalo.
Next, download and install SQL Server Management Studio (SSMS) to manage your database. Once installed, open SSMS, connect to your server instance, and use the Object Explorer to view and manage your databases, tables, and other objects.
For production environments, enable remote connections. Open SQL Server Configuration Manager, activate the TCP/IP protocol under SQL Server Network Configuration, and start the SQL Server Browser service.
Creating Your Adalo Account
Head to Adalo's website to sign up for a free account and start building your medical app. The free tier lets you create and publish web apps, while a free trial gives you access to premium features to explore the platform's full potential.
Once logged in, you'll find a dashboard where you can create a new app. Adalo's drag-and-drop WYSIWYG editor makes it easy to customize buttons, forms, and lists. When you're ready to publish to mobile platforms, upgrade to a paid plan starting at $45 per month. This allows you to deploy your app to both the Google Play Store and the Apple App Store with a single build, ensuring updates sync across all platforms.
With your Adalo account set up, you can configure your SQL Server connection and secure your data.
Understanding Healthcare Data and HIPAA Requirements
Handling healthcare data means adhering to HIPAA regulations, which protect PHI such as medical records and identifiable information.
HIPAA compliance involves four key security layers: platform (hardware and network security), authentication (restricting data access), objects (data encryption and structure), and applications (how data is accessed). Ensure your SQL Server operates in a secure environment with firewalls, regular OS updates, and limited physical access. For added security, segment your network into separate zones for production and development.
Authentication is critical. Use Multi-Factor Authentication (MFA) and follow the principle of least privilege, granting users only the access they need. Within SQL Server, enforce data integrity with primary keys, foreign keys, and check constraints. Protect data at rest and in transit using AES encryption.
HIPAA also requires detailed audit trails. Track all SELECT, INSERT, UPDATE, and DELETE actions on sensitive tables and store these logs securely for at least six years. SQL Server's built-in Server Audit and Database Audit Specifications can help automate this process.
"Health care data is sensitive and cannot be compromised. The stakes are too large for any data loss or a data breach."
- Jeremy Kadlec, Co-Founder and Editor, MSSQLTips.com
For testing purposes, never use real patient data. Instead, use data masking or obfuscation techniques to create realistic but anonymized datasets. When connecting Adalo to SQL Server, ensure that connection strings are stored securely in your app configurations, not hard-coded.
Adalo simplifies deployment by allowing you to launch production-ready apps as Progressive Web Apps (PWAs) or natively to iOS and Android stores without separate rebuilds.
With compliance measures in place, you can now configure your SQL Server and Adalo settings to establish a secure connection.
Creating Your SQL Server Database Structure
When setting up your SQL Server database for a healthcare application, designing a well-structured schema is essential. A well-planned schema ensures secure and efficient organization of healthcare data, allowing for seamless access and minimal redundancy. To achieve this, aim to normalize your database to Third Normal Form (3NF). This approach ensures each piece of data is stored only once and relationships between tables are clearly defined, reducing duplication and improving efficiency.
Your database should include four key tables: Patients, Doctors, Appointments, and MedicalRecords. Each table needs a primary key to uniquely identify records, along with foreign keys to establish relationships between related data. For instance, the Appointments table links patients to doctors using foreign key relationships.
Creating Tables and Fields
To start, connect to your server using SQL Server Management Studio (SSMS) and create a new database. Once the database is ready, you can define the tables either through SSMS or by running SQL scripts.
The Patients table will store demographic details. Use INT IDENTITY(1,1) for the PatientID primary key to automatically generate unique IDs for each patient. Fields like FirstName, LastName, and Address should use VARCHAR or NVARCHAR, while DateOfBirth should use the DATE data type. To format dates as MM/DD/YYYY, use CONVERT(VARCHAR, DateOfBirth, 101).
| Table Name | Essential Fields | Data Type | Key Type |
|---|---|---|---|
| Patients | PatientID, FirstName, LastName, Gender, DateOfBirth, ContactNumber, Address | INT, VARCHAR, CHAR, DATE, VARCHAR | PK |
| Doctors | DoctorID, FirstName, LastName, Specialization, ContactNumber, Email | INT, VARCHAR, VARCHAR, VARCHAR, VARCHAR | PK |
| Appointments | AppointmentID, PatientID, DoctorID, AppointmentDate, AppointmentTime | INT, INT, INT, DATE, TIME | PK, FK (Patient), FK (Doctor) |
| MedicalRecords | RecordID, PatientID, DoctorID, Diagnosis, Prescription, TreatmentDate | INT, INT, INT, VARCHAR, TEXT, DATE | PK, FK (Patient), FK (Doctor) |
Mandatory fields like FirstName, LastName, and AppointmentDate should use NOT NULL constraints to prevent incomplete records. For longer text fields, such as medical notes or prescriptions, use TEXT or VARCHAR(MAX).
Setting Up Table Relationships and Indexes
Defining relationships between tables is crucial for maintaining data integrity. For example, an appointment cannot exist without a valid patient or doctor. In SSMS, you can visually map these relationships using the Database Designer, which displays a key symbol for the parent table and an infinity symbol for the child table in one-to-many relationships.
Primary keys automatically create clustered indexes, which determine the physical order of data. To improve performance further, create non-clustered indexes on columns frequently used in searches or joins. For instance, indexing the PatientID column in the Appointments table and the AppointmentDate column can speed up queries for retrieving appointment histories.
Additionally, use CHECK constraints to enforce specific conditions, such as ensuring AppointmentDate is not in the past or limiting Gender values to 'M', 'F', or 'O'. When inserting related data, such as adding a patient and scheduling their first appointment, wrap the operations in a transaction to avoid orphan records.
SQL Scripts for Building Your Database
Here’s a complete SQL script to create your database structure:
CREATE DATABASE MedicalAppDB;
GO
USE MedicalAppDB;
GO
CREATE TABLE Patients (
PatientID INT IDENTITY(1,1) PRIMARY KEY,
FirstName VARCHAR(50) NOT NULL,
LastName VARCHAR(50) NOT NULL,
Gender CHAR(1) CHECK (Gender IN ('M', 'F', 'O')),
DateOfBirth DATE NOT NULL,
ContactNumber VARCHAR(15),
Address VARCHAR(200)
);
CREATE TABLE Doctors (
DoctorID INT IDENTITY(1,1) PRIMARY KEY,
FirstName VARCHAR(50) NOT NULL,
LastName VARCHAR(50) NOT NULL,
Specialization VARCHAR(100),
ContactNumber VARCHAR(15),
Email VARCHAR(100)
);
CREATE TABLE Appointments (
AppointmentID INT IDENTITY(1,1) PRIMARY KEY,
PatientID INT NOT NULL,
DoctorID INT NOT NULL,
AppointmentDate DATE NOT NULL,
AppointmentTime TIME NOT NULL,
FOREIGN KEY (PatientID) REFERENCES Patients(PatientID),
FOREIGN KEY (DoctorID) REFERENCES Doctors(DoctorID)
);
CREATE TABLE MedicalRecords (
RecordID INT IDENTITY(1,1) PRIMARY KEY,
PatientID INT NOT NULL,
DoctorID INT NOT NULL,
Diagnosis VARCHAR(500),
Prescription TEXT,
TreatmentDate DATE NOT NULL,
FOREIGN KEY (PatientID) REFERENCES Patients(PatientID),
FOREIGN KEY (DoctorID) REFERENCES Doctors(DoctorID)
);
CREATE INDEX idx_patient_appointments ON Appointments(PatientID);
CREATE INDEX idx_appointment_date ON Appointments(AppointmentDate);
CREATE INDEX idx_patient_records ON MedicalRecords(PatientID);
GO
After creating the tables, you can test your setup by adding sample data:
INSERT INTO Patients (FirstName, LastName, Gender, DateOfBirth, ContactNumber, Address)
VALUES
('John', 'Smith', 'M', '1985-03-15', '555-0101', '123 Main St, Boston, MA'),
('Sarah', 'Johnson', 'F', '1990-07-22', '555-0102', '456 Oak Ave, Cambridge, MA'),
('Michael', 'Williams', 'M', '1978-11-08', '555-0103', '789 Pine Rd, Somerville, MA');
INSERT INTO Doctors (FirstName, LastName, Specialization, ContactNumber, Email)
VALUES
('Emily', 'Chen', 'Cardiology', '555-0201', 'echen@hospital.com'),
('David', 'Martinez', 'General Practice', '555-0202', 'dmartinez@hospital.com');
INSERT INTO Appointments (PatientID, DoctorID, AppointmentDate, AppointmentTime)
VALUES
(1, 1, '2026-01-20', '09:00:00'),
(2, 2, '2026-01-21', '14:30:00'),
(3, 1, '2026-01-22', '11:00:00');
GO
For tasks like retrieving all appointments for a specific patient, consider creating stored procedures to simplify the logic and protect against SQL injection. You can also create views, such as vw_PatientAppointments, to combine data from multiple tables, making it easier to display information like patient names alongside appointment times.
Platforms like Adalo can help you turn this database into a fully functional app that's ready for deployment as a Progressive Web App (PWA) or natively on iOS and Android, without requiring additional rebuilding.
Connecting Adalo to SQL Server
You can link your SQL Server database to Adalo by leveraging DreamFactory, a tool that automatically creates REST API endpoints from your database tables. This middleware serves as a bridge, transforming your SQL Server tables into endpoints that Adalo can access via its External Collections feature. Before you start, ensure your SQL Server is configured for secure API communication.
Preparing SQL Server for API Connections
To allow DreamFactory to communicate with your SQL Server, you’ll need to configure network access and authentication. Start by opening SQL Server Configuration Manager and enabling the TCP/IP protocol under "SQL Server Network Configuration." Set the default port to 1433, which is the standard for SQL Server. Then, update your Windows Firewall to allow inbound traffic on port 1433, but restrict access to only the IP address of your DreamFactory instance. This ensures secure and specific access between the two systems.
Switch your SQL Server to Mixed Mode Authentication instead of Windows-only authentication. This allows you to create a dedicated SQL login with limited permissions. For example, if your app only needs to display patient and appointment data, grant SELECT-only permissions and avoid enabling INSERT, UPDATE, or DELETE rights. As Kevin McGahey, Solutions Engineer at DreamFactory, points out:
"DreamFactory lets you create a secure Microsoft SQL Server API in just minutes - no coding required".
Additionally, use SQL Views to exclude sensitive columns from being exposed through the API.
| Credential Type | Description | Example Value |
|---|---|---|
| Host | Database server address | sql.yourdomain.com |
| Port | SQL Server standard port | 1433 |
| Database Name | Target database for the app | MedicalAppDB |
| Username | Dedicated API login | adalo_service_user |
| Header Name | Required Adalo header | X-DreamFactory-API-Key |
| Results Key | DreamFactory JSON wrapper | resource |
Adding SQL Server Data to Adalo
Once your SQL Server is ready, head over to the DreamFactory dashboard. Under Services > Create, select SQL Server from the list of database connectors. Enter your connection details, such as the host (e.g., sql.yourdomain.com:1433), database name (e.g., MedicalAppDB), and the dedicated username and password you previously set up. The service name you choose here will determine the structure of your API URL. For instance, naming it medical_data_api will create endpoints like /api/v2/medical_data_api/Patients.
To secure data in transit, enable SSL in DreamFactory’s settings. Given that the average cost of a data breach reached $4.35 million in 2023, encryption is critical - especially for healthcare applications.
DreamFactory will automatically generate REST endpoints for your tables, which you can test via the API Docs tab. Next, create a new application in the DreamFactory Apps section and generate an API Key to authenticate requests from Adalo. Use Role-Based Access Control (RBAC) to define permissions for different user roles, such as:
- Provider: Read/write access
- Patient: Read-only access to personal records
- Analyst: Read-only access for reporting
In Adalo, go to External Collections and add a new collection. Enter the base URL for the DreamFactory API (e.g., https://your-dreamfactory-instance.com/api/v2/medical_data_api/Patients). In the Headers section, include X-DreamFactory-API-Key as the header name and paste your API key as the value. Set the Results Key to resource, as DreamFactory wraps all record collections in this JSON key. Test the connection, and if everything is set up correctly, your patient records will appear in the data preview. Repeat this process for other tables like Doctors, Appointments, and MedicalRecords to integrate all necessary data into Adalo.
Securing Your Data Connection
After establishing your API endpoints, focus on securing the connection to protect sensitive data. Ensure all communications between Adalo, DreamFactory, and SQL Server use TLS 1.2 or higher for encryption in transit. On the SQL Server side, enable Transparent Data Encryption (TDE) to safeguard data at rest, and configure SQL Server Audit to log access attempts involving protected health information, ensuring compliance with HIPAA regulations.
To minimize risks, rotate your API key every 90 days. As Terence Bennett, CEO of DreamFactory, notes:
"Nothing goes public until it's explicitly allowed".
For added security, consider self-hosting DreamFactory to keep your data within a private network, simplifying compliance with healthcare data regulations.
Adalo allows you to deploy your app as a Progressive Web App or natively to iOS and Android app stores, making it production-ready without requiring separate rebuilds.
sbb-itb-d4116c7
Building Your Medical App Features in Adalo
With SQL Server connected through DreamFactory, you can create dynamic Adalo screens that pull real-time data for patients, appointments, and medical records. Adalo's visual builder simplifies the process - just drag and drop components onto the canvas and bind them to your External Collections, seamlessly integrating data from SQL Server. Let’s dive into how you can build the key screens for managing patients, scheduling appointments, and organizing medical records.
Before starting, ensure every SQL Server table includes a primary key. According to Microsoft Documentation:
"The SQL Server connector... assumes that tables have a primary key. A primary key is critical for finding specific records to update. If a SQL Server table doesn't have a primary key, the data is read-only".
Building the Patient Management Screen
To create a patient management screen, start by adding a List component to a new screen in Adalo. Connect this list to your Patients External Collection, and display fields like the patient’s name, date of birth, and phone number. For better performance, make sure your SQL Server has an index on the patient_id column. You can also filter the list by clinic or provider to narrow down the results.
Next, add a Form screen for creating or editing patient records. Map each form field to its corresponding SQL column - such as first_name, last_name, dob, gender, address, phone, and insurance_info. When users hit "Submit", Adalo sends a Create or Update request to the SQL Server via the DreamFactory API, ensuring your database stays up-to-date.
Building the Appointment Scheduling Screen
For scheduling appointments, create a screen that includes a Date/Time Picker and a Dropdown. These components allow users to select dates and times while linking appointments to specific providers. Make sure dates are stored in UTC format and indexed for quick access. Your SQL Server Appointments table should include fields like UniqueID (as the Primary Key), StartDate, EndDate, Subject, and ResourceID to connect appointments to providers. Use IDENTITY(1,1) for the UniqueID column so SQL Server automatically generates unique identifiers for new bookings.
To display scheduled appointments, add a List component that filters results by the selected date or doctor. This helps avoid double-booking by showing which time slots are already taken. Adding indexes to the StartDate and ResourceID columns will keep the table responsive as it grows.
Once your patient and appointment management screens are ready, you can move on to handling detailed medical records.
Building the Medical Records Screen
Set up a screen with a List component that shows past diagnoses, treatments, and notes for a selected patient. Connect this list to your MedicalRecords External Collection and filter it by patient_id. For a more detailed view, create a Detail Screen that displays the full record when a user taps on an item.
Keep in mind that Adalo does not natively support HIPAA compliance for sensitive data. For medical images or other highly sensitive files, consider uploading them to an encrypted storage service like Amazon S3 and storing only the file reference in your SQL Server. Always ensure your app follows HIPAA guidelines for data handling and security.
Adalo allows you to deploy your app as a Progressive Web App or publish it natively to iOS and Android stores - all without needing separate rebuilds. It’s a streamlined way to deliver a production-ready medical app.
Testing, Launching, and Maintaining Your App
Testing Your App
To ensure your app functions as intended, test how data flows between Adalo and SQL Server. Use tools like SSMS and Transact-SQL to verify processes like record insertion, updates, and queries. This step is crucial for confirming the secure integration between SQL Server and Adalo, which is essential for a HIPAA-compliant medical app.
The Office for Civil Rights (OCR) provides clear guidance on the importance of protecting health information:
"The HIPAA Privacy Rule establishes national standards to protect individuals' medical records and other individually identifiable health information... and applies to health plans, health care clearinghouses, and those health care providers that conduct certain health care transactions electronically."
To maintain data integrity, validate your database schema using SQL database projects. This process checks table relationships and syntax against the target platform. Additionally, test whether operations like filtering and sorting are delegated to SQL Server rather than handled on the device. This approach minimizes data transfer and boosts performance. Finally, secure your connection strings and ensure SQL connections are properly disposed of to enhance security.
Publishing to Web, iOS, and Android
Once testing confirms your app's functionality, it's time to prepare for deployment across multiple platforms. Adalo allows you to deploy a single build as a Responsive App for web, iOS, and Android by selecting the "Mobile, Tablet, and Desktop" layout. This ensures your app performs well on various screen sizes. Before the full launch, leverage Apple's TestFlight and Google Play Testing to gather feedback from real users.
Make sure you have the necessary developer accounts and follow the submission guidelines for each platform. For web publishing, you can use either a custom domain or Adalo's default domain. To improve visibility, optimize your app description with relevant keywords like "patient management app" or "medical appointment scheduler".
Maintaining and Troubleshooting Your App
Once your app is live, the focus shifts to ongoing maintenance and troubleshooting. Regularly monitor performance and optimize database queries to keep your app running smoothly. Use SQL database projects and tools like GitHub Actions within your CI/CD pipeline to ensure schema consistency over time. Maintain the secure connections established during setup by rotating API keys and using TLS encryption.
To monitor app performance, check server configurations (e.g., enabling TCP/IP and ensuring the SQL Server Browser service is active) and test functionality on actual devices through Adalo's Preview mode. Implement input constraints and defaults - such as setting "0" for number fields - to prevent display errors. Additionally, set up real-time error notifications to address issues promptly.
Adalo's platform simplifies deployment by allowing you to publish your app as a Progressive Web App (PWA) or natively to iOS and Android stores - all from a single build. This flexibility makes it easier to manage and update your app across platforms.
Conclusion
Creating a medical app using SQL Server and Adalo combines the powerful data management capabilities of SQL Server with Adalo's fast and flexible no-code development tools. This guide walked you through designing a well-structured database, securely connecting SQL Server to Adalo, and building key features like patient management, appointment scheduling, and medical records - all while adhering to HIPAA requirements.
The cost advantage is undeniable. Traditional app development can easily surpass $100,000, but with platforms like Adalo, you can develop a Minimum Viable Product (MVP) for under $50 a month. This budget-friendly approach aligns perfectly with the secure and efficient development methods outlined here.
Security remains a top priority. Always sanitize database inputs to guard against SQL injection, enforce role-based access control to limit data exposure, and conduct regular security audits to review server permissions and configurations. Encryption is an essential layer of protection, but it must be paired with robust access controls to fully safeguard sensitive patient data.
When building your app, focus on the essentials first. Prioritize features like appointment scheduling and patient record management to avoid unnecessary complexity that could delay your launch. SQL Server's stored procedures, as discussed earlier, can help automate repetitive tasks and improve performance as your app scales. And with Adalo, you can deploy your app as a Progressive Web App (PWA) or natively on iOS and Android, ensuring your healthcare solution is accessible across all major platforms.
FAQs
How do I make sure my medical app meets HIPAA requirements?
To make sure your medical app meets HIPAA regulations, it's crucial to protect sensitive data both when it's stored and while it's being transmitted. For stored data, use Transparent Data Encryption (TDE) to add a layer of security, and rely on column-level encryption to protect specific pieces of Protected Health Information (PHI). To control who can access what, implement row-level security and enforce strict access controls tailored to user roles.
Track and log database access by enabling SQL Server Audit, which helps maintain accountability by recording every interaction with the data. For securing data during transmission, use TLS encryption to shield it from unauthorized interception. These measures align with HIPAA’s technical safeguards, helping your app stay secure and compliant with healthcare industry standards.
What are the main advantages of using SQL Server for managing healthcare data?
SQL Server stands out as a reliable and scalable solution for managing healthcare data. Its strong transactional safety and referential integrity ensure that critical information - like patient records, appointments, and medical data - remains consistent and accurate. Plus, with the ability to support up to 32,767 databases per instance, it’s well-equipped to handle the demands of even the largest healthcare organizations.
On top of that, SQL Server offers robust security features to safeguard sensitive healthcare data. These include powerful backup options and customizable permission settings, giving administrators the tools they need to protect information. Built-in performance monitoring tools further enhance its usability, making it easier to fine-tune database performance and ensure smooth, compliant data management for healthcare operations.
How does Adalo make it easy to build and launch a medical app with SQL Server?
Adalo makes building medical apps straightforward with its easy-to-use drag-and-drop interface, removing the need for coding expertise. It also lets you connect your app directly to SQL Server, streamlining the management of patient data, appointments, and medical records.
Equipped with built-in tools for database integration, Adalo takes care of everything - from crafting the user interface to deploying the final product. This ensures a quick, secure, and smooth process, so you can concentrate on delivering a solution that meets healthcare requirements effectively.
