Developing apps behind corporate firewalls while working with legacy systems like SAP or SQL databases can be challenging. These systems are critical for businesses but lack modern integration capabilities, making security a top concern. Opening firewall ports or granting broad access increases risks, especially when insider breaches cost an average of $4.92 million.
Here’s the solution: Role-Based Access Control (RBAC). By assigning permissions based on roles instead of individuals, RBAC ensures users only access what they need. This approach improves security, reduces management time by 30%, and can cut data breach risks by up to 50%. Additionally, RBAC supports compliance with regulations like GDPR and HIPAA, simplifies audits, and enforces the Principle of Least Privilege.
Key takeaways:
- RBAC organizes permissions by roles, not users, ensuring secure and efficient access.
- Legacy systems can securely integrate with modern apps using middleware, proxies, and identity-driven policies.
- Use tools like API gateways, encryption, and token-based authentication to protect sensitive data.
- Regularly audit roles and permissions to prevent privilege escalation or compliance issues.

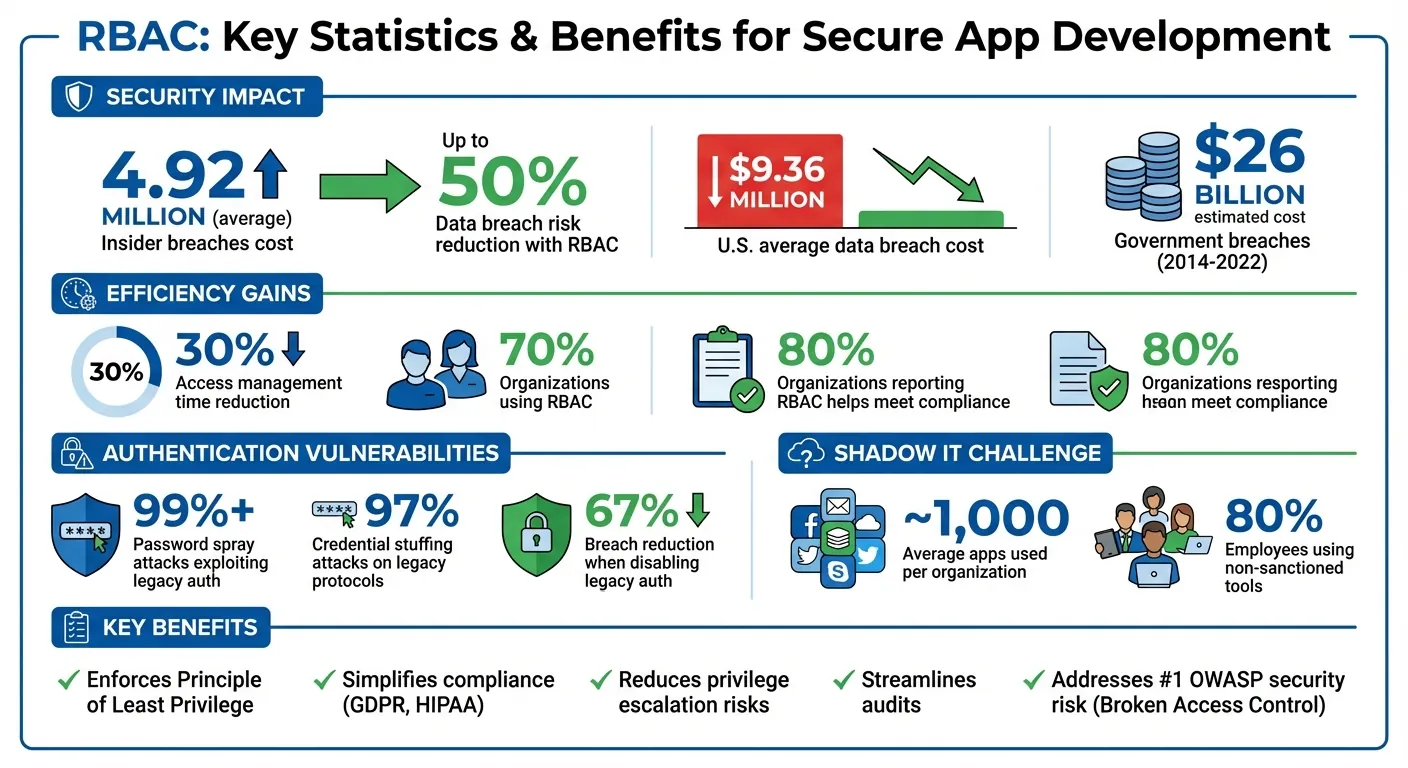

RBAC Benefits and Statistics for Secure App Development
What is RBAC and Why It Matters
How RBAC Works
Role-Based Access Control (RBAC) organizes system access by roles rather than assigning permissions individually. A "role" groups permissions based on job functions, streamlining the process of granting access. This approach eliminates the need to configure permissions for each user manually, making it more efficient and less error-prone.
RBAC operates under three core rules defined by the National Institute of Standards and Technology (NIST). First, a user can only perform actions authorized by their assigned role. Second, a role must be active for its permissions to apply. When a user logs in, the system checks their roles in a directory and issues a session token. This token ensures they can only perform actions permitted by their roles.
"RBAC eliminates the need to provision each individual user with a customized set of user permissions. Instead, defined RBAC roles determine access rights." - IBM Think
If someone is assigned multiple roles, their permissions are combined. Additionally, hierarchical RBAC allows higher-level roles to inherit permissions from lower-level ones. For instance, someone with both "Sales Rep" and "Marketing Coordinator" roles would have access to the combined permissions of both.
These principles form the backbone of RBAC, highlighting its importance in securing applications effectively.
Why RBAC is Necessary for Secure App Development
RBAC is a cornerstone of secure app development, particularly for businesses operating behind corporate firewalls. It acts as a safeguard, limiting unauthorized access to sensitive systems. Today, 70% of organizations rely on RBAC as their go-to method for managing permissions. Those adopting RBAC report a 30% reduction in time spent on managing access. Moreover, RBAC can cut the risk of data breaches by up to 50%, as it reduces unnecessary access points.
A key benefit of RBAC is its enforcement of the Principle of Least Privilege. This principle ensures users only have access to what they need for their roles, reducing the chances of accidental or malicious exposure of sensitive data. For example, without RBAC, a citizen developer might unintentionally expose payroll data or alter critical financial records in a system like SAP. By limiting access based on job functions, RBAC reduces the potential damage from compromised accounts and prevents attackers from moving freely within your network.
"Great security isn't about saying 'no' to access; it's about making sure the right people always have a secure way to say 'yes'." - LoginRadius
RBAC also simplifies compliance with regulations like GDPR and HIPAA. In fact, 80% of organizations report that RBAC helps them meet regulatory requirements by providing a clear framework for auditing access rights. Instead of tracking thousands of individual permissions, roles can be audited quickly to determine who accessed what and when. This is especially critical given that broken access control is currently the top-ranked issue on the OWASP Top 10 list of application security risks.
sbb-itb-d4116c7
Fine-Grained Role-Based Access Control For Linux With OPA And LDAP
How to Map Roles and Permissions for Legacy Systems
Start by identifying the key resources in your legacy systems - like SQL databases, LDAP directories, or specific web pages - and define the actions users can take, such as viewing, editing, or deleting data. Link these permissions to authorization policies that can be updated without requiring a code change.
Before you connect any legacy system, conduct a thorough review of existing permissions. Over time, IT teams often grant undocumented "out-of-band" permissions, which can lead to security gaps. Revoke any unnecessary access before you begin mapping roles. For systems with limited documentation, try the record-then-replace technique: assign a privileged "Admin" role, log all actions during specific activities using audit logs, and then use those logs to create precise, least-privilege roles.
Using Hierarchical RBAC (Role-Based Access Control) can simplify managing roles in legacy systems. This approach mirrors your organizational structure, making it easier to manage permissions. For example, a "Regional Manager" role can automatically inherit permissions from "Sales Rep" and "Marketing Coordinator" roles, reducing redundancy and streamlining audits, particularly in complex environments with multiple layers of oversight.
With resource scopes clearly defined, you can now focus on creating roles that align with specific business functions.
Define Roles Based on Business Needs
Once you've mapped access points in your systems, tailor role definitions to reflect the actual job functions within your organization. Identify which roles interact with your legacy systems. Common examples include developers (who handle app building and testing), admins (responsible for system configurations), and external contractors (who require temporary, restricted access). Assign only the permissions necessary for each role to perform its tasks - nothing extra.
In multi-tenant environments, opt for App Roles instead of directory groups. App roles are defined within your application registration and remain consistent across tenants, unlike group identifiers, which vary by tenant. These roles are delivered via the "roles" claim in authentication tokens, ensuring they’re ready to use as soon as a user logs in.
For legacy systems that don’t support modern protocols like SAML or OIDC, you can use provisioning agents. These agents sync user lists and roles directly to older systems, such as SQL databases or LDAP directories, through SOAP or REST APIs. This approach bridges the gap between modern authentication and outdated systems that are difficult to upgrade.
Manage Overlapping Roles and Privilege Escalation
When roles overlap, permissions combine. To avoid privilege escalation, implement Separation of Duties (SoD) and use constrained RBAC.
"RBAC is an additive model, so if you have overlapping role assignments, your effective permissions are the union of your role assignments." - Auth0
Separation of Duties ensures that no single user can perform conflicting actions. For example, in a financial system, one role might request payments while another approves them. This reduces the risk of fraud and prevents conflicts of interest.
Define decision strategies to handle overlapping permissions effectively. An "Affirmative" strategy grants access if any assigned role allows it, while a "Unanimous" strategy requires all roles to permit the action. Choose the approach that aligns with your security policies. For large-scale environments, use Administrative Units to limit a role’s scope, such as restricting a regional admin’s permissions to their specific region rather than granting global access.
Be mindful of "role explosion" - a situation where the number of roles grows uncontrollably to meet specific needs, making the system harder to manage and audit. To avoid this, group permissions by shared responsibilities instead of creating unique roles for each user. Regular audits during "Joiner, Mover, Leaver" events can help identify and address "toxic combinations", where users accumulate permissions from both past and current roles.
How to Configure RBAC in No-Code Platforms
Setting up Role-Based Access Control (RBAC) in a no-code platform is key to maintaining security across both modern APIs and older systems. By defining roles, you ensure that every app follows consistent security rules, whether it connects to a cutting-edge API or a legacy SQL database.
Steps to Enable and Configure RBAC
- Map job functions to permissions. Define roles based on job responsibilities. For example, an Admin might have full control, a Manager could have read and write access to specific areas, and Support might only need read-only access to customer data. Keep permissions tight - users should only have access to what’s necessary.
- Integrate with an Identity Provider (IdP). Use tools like Okta, Auth0, or Google LDAP with SAML or SCIM. This setup centralizes user management, automatically syncing roles when an employee changes positions or leaves. Some platforms offer Just-In-Time (JIT) provisioning, which creates accounts and assigns roles automatically when a user logs in for the first time.
- Set app-level access controls. Organize applications and workflows into folders. Assign permissions so users only see tools relevant to their tasks. Permissions cascade to new items in the folder, making bulk management easier.
- Leverage role hierarchies. Create a structure where senior roles inherit permissions from junior ones. This reduces repetitive configurations and streamlines administration.
Once these steps are in place, apply the principle of least privilege to tighten security further.
Implement Least-Privilege and Security Trimming
Limit access to only what’s essential. This approach reduces vulnerabilities, which is critical since broken access control ranks as the top application security failure on the OWASP Top 10 list.
"Under PoLP, user roles grant access to the minimum level of permissions required to complete a task or fulfill a job." - IBM Think
Security trimming ensures users only see data they’re authorized to access. For example, you can use conditional SQL queries like WHERE owner_email = {{retoolContext.user.email}} to filter data based on user roles.
To secure sensitive actions, disable or conditionally hide buttons for unauthorized users. For instance, restrict operations like "Delete" or "Update" to specific roles. These controls, enforced on the server side, align with Zero Trust principles.
Create custom groups tailored to your needs, such as App User, App Developer, and App Admin. In multi-tenant setups, limit group permissions based on environments - for example, granting App Users access to Production but restricting App Developers to Sandbox environments.
Finally, document these settings and monitor them regularly to maintain compliance and quickly address issues.
Set Up Audit Logging and Monitor Role Assignments
Enable audit logging to track changes in permissions and user activities. Logs provide a clear record of "who did what, when, and with what outcome", which is essential for compliance and forensic investigations.
"If you find issues with the permissions assigned to users, correcting them requires a single role edit. Alternatively, if you were controlling permissions on a per-user basis, you would have to audit hundreds or even thousands of users." - Auth0
Include key data in logs, such as user ID, timestamps, tool parameters, and action outcomes. For workflows involving multiple tools or APIs, use correlation IDs to link events into a single chain.
Restrict access to logs to privileged roles only. Use append-only storage or cryptographic hash-chaining to prevent tampering. Retain logs based on regulations - financial data often requires 7 years, while healthcare records mandate at least 6 years.
Set up real-time alerts for security events like policy violations, repeated unauthorized access attempts, or high-risk actions. Regularly test your logging system with drills to ensure it captures the necessary data and can reconstruct security incidents when needed.
How to Integrate Legacy Systems Securely
Connecting legacy systems to modern applications requires careful planning. These older systems often lack modern APIs and rely on outdated authentication methods, leaving them vulnerable to security risks. The solution? Implement a secure layer that bridges your legacy infrastructure with no-code apps - without needing to rewrite decades-old code.
Connect Systems With and Without APIs
Legacy systems, such as Oracle databases, SQL Server instances, or SFTP file servers, often don't support REST APIs. Middleware services can step in to create secure, documented REST APIs for these systems, enabling seamless communication with no-code app builders. This approach modernizes interactions with systems that were never designed for web-based requests.
For systems using older protocols like SOAP, an API gateway can act as a translator. It converts modern REST/JSON requests into the SOAP/XML format that legacy systems require.
"To bridge the gap between APIs and legacy systems, consider using middleware or API gateways. Middleware can connect older systems to modern technology, while gateways help manage traffic, security, and scaling effectively." - Jeffrey Zhou, CEO and Founder of Fig Loans
When dealing with databases behind firewalls, use SSH tunneling to secure connections without exposing them to the internet. Integrate these methods with Role-Based Access Control (RBAC) to ensure strict security. For example, apply RBAC at the API level to limit roles to read-only access or restrict them to specific database fields, even if the legacy system itself lacks robust access controls.
Once you've established these connections, focus on securing the data during integration.
Secure Data During Integration
Encryption is a must for protecting data both in transit and at rest. Use modern encryption protocols like TLS 1.3 (or at least TLS 1.2) to secure web traffic between your app and the API gateway. Avoid outdated protocols, such as SHA-1 and TLS 1.0. For credentials stored within your integration platform, encrypt them using AES-256 and decrypt them only during active connections to the legacy system.
| Feature | AES-256 | RSA-4096 |
|---|---|---|
| Type | Symmetric | Asymmetric |
| Best Use Cases | Bulk data, file, and database encryption | Digital signatures, key exchanges |
| Performance | Fast | Slower |
| Resource Requirements | Low | High |
For sensitive information, such as Social Security numbers or payment details, tokenize the data to replace it with secure tokens. Additionally, configure your production environment correctly (e.g., setting APP_DEBUG=false and APP_ENV=production) to prevent error messages from exposing critical system details.
The financial stakes are high. In the U.S., the average cost of a data breach is $9.36 million. Between 2014 and 2022, government agency breaches alone cost an estimated $26 billion. One notable example occurred in July 2024, when a ransomware attack on Columbus, Ohio, compromised 6.5 terabytes of data and affected 500,000 individuals. The city spent $7 million on restoration, legal fees, and resident protection.
Once data security is in place, it's time to address outdated authentication protocols.
Handle Legacy Authentication Protocols
Many legacy systems rely on outdated authentication methods like Basic Authentication, NTLM, or Kerberos. These protocols are frequent targets for attacks - over 99% of password spray attacks and 97% of credential stuffing attacks exploit these vulnerabilities. Organizations that disable such methods see 67% fewer breaches.
Instead of rewriting legacy applications, use a reverse proxy or identity orchestration layer to enhance security. Adding Multi-Factor Authentication (MFA) is another effective way to bolster protection without modifying legacy code.
A better long-term approach is to transition to token-based authentication. Integrate with an Identity Provider (IdP) that supports OAuth 2.0 or OpenID Connect. After a user authenticates via Active Directory or LDAP, generate a JSON Web Token (JWT) to maintain their session within modern applications. You can also map user groups in Active Directory to RBAC roles within your no-code platform, simplifying permission management without duplicating user data.
Network segmentation is another critical step. Isolate vulnerable or end-of-life (EOL) systems from the rest of your infrastructure. EOL software can accumulate hundreds of vulnerabilities in just six months, and these weaknesses are often exploited in breaches. For example, during the 2017 WannaCry ransomware outbreak, 98% of affected machines were running Windows 7, an EOL operating system without the necessary security patches.
If immediate upgrades aren't possible, apply compensating controls like virtual patching, Web Application Firewalls (WAF), and enhanced logging. Centralize logging by integrating legacy API activity into a modern monitoring stack. This helps track unauthorized access attempts and ensures compliance with regulations like GDPR or HIPAA.
Governance and Compliance Best Practices
Establishing governance policies is the backbone of maintaining control and oversight in systems that rely on RBAC. It's not just about configuring roles - it's about creating a framework that ensures access is controlled, auditable, and justified. Without these policies, organizations risk losing track of who has access to what, why they have it, and for how long.
Create Governance Policies for RBAC
Start by documenting every role in your no-code applications. Each role should clearly define the permissions it grants, the business personas it applies to, and any prerequisites for access. For example, a Finance Analyst role might require that the user is a verified member of the Finance Department.
Introduce multi-step approval workflows to add layers of accountability. These workflows should include fixed access durations - like 30, 90, or 365 days - to enforce periodic reviews. A typical approval process might involve the user's manager first, followed by the data steward or resource owner.
| Policy Component | Description | Example Implementation |
|---|---|---|
| Prerequisites | Standards a user must meet before access | Must be a member of the Finance Department |
| Approvers | Individuals who authorize access | User's Manager + Data Steward |
| Access Duration | How long access remains valid | 90 days for vendors; annual review for staff |
| Separation of Duties | Prevents conflicting role combinations | Cannot hold both "Invoice Creator" and "Payment Approver" |
| Conditional Access | Context-based requirements for access | MFA required; must use a registered device |
Separation of Duties (SoD) is a critical part of governance policies, especially in financial systems where fraud prevention is a concern. By enforcing SoD constraints, you ensure that no single user can hold conflicting permissions, such as creating invoices and approving payments.
Another growing challenge is shadow IT. Research shows that the average organization uses around 1,000 different apps, with 80% of employees relying on non-sanctioned tools that haven't been vetted for security or compliance. To combat this, use API integrations and log collectors to identify unauthorized no-code apps that could bypass corporate security policies.
"Identity is always the primary perimeter. This scope doesn't just include the edges of your workload. It also includes individual components that are inside your workload." - Microsoft Power Platform Documentation
Automating identity lifecycle management is another key practice. Protocols like SCIM allow you to sync access changes between your identity provider and no-code applications. For example, when an employee leaves the company or changes roles, their access should be automatically revoked. Before rolling out new policies, conduct an initial access review to establish a clean baseline of authorized users.
With these policies in place, your organization can ensure long-term compliance and secure access controls.
Maintain Regulatory Compliance
Defining governance policies is just the first step. To sustain them, organizations must implement proactive compliance measures. This involves continuous monitoring, documentation, and auditing.
Audit trails are essential for tracing every action within your no-code apps. They log who accessed what data, when they accessed it, and any changes made to role assignments. Centralized logging systems can also help monitor unauthorized access attempts and ensure adherence to regulations like GDPR and HIPAA.
Enable Continuous Access Evaluation (CAE) to reduce the risk window for attackers. Unlike traditional token expiration (which can take 60 to 90 minutes), CAE revokes access tokens in real-time when security events occur, such as a user being disabled or flagged as high-risk.
Regular access reviews - scheduled quarterly or yearly - are another important step. These reviews ensure that roles and permissions remain appropriate as projects evolve or personnel change. They also help identify and remove stale permissions, reducing the risk of security vulnerabilities.
"RBAC provides transparency for regulators regarding who, when and how sensitive information is being accessed or modified." - IBM Think
Blocking outdated authentication protocols like Basic Authentication is another compliance best practice. Instead, require modern protocols like OpenID Connect and OAuth2 for all integrations. For further security, externalize secrets by using dynamic secret stores such as Azure Key Vault. This approach allows for automatic rotation and revocation of API keys without manual intervention.
Finally, maintain comprehensive governance documentation. This includes access justifications, designated approvers, and default access durations for each role. Such documentation not only aids in compliance audits but also helps new administrators understand the reasoning behind existing policies. Limit administrative accounts and assign dedicated roles for admin tasks to further tighten security.
Conclusion
Securing app development behind your corporate firewall allows you to protect legacy systems without the need for costly replacements. Implementing Role-Based Access Control (RBAC) can reduce user access management time by 30% and lower breach risks by as much as 50%.
To strengthen your defenses, treat identity as the cornerstone of your security strategy. Leverage tools like API gateways, application proxies, or secure hybrid access to safeguard legacy systems without disrupting their delicate codebases.
"RBAC is not just a security measure - it's a business enabler. It protects data, streamlines IT operations, reduces downtime caused by misconfigurations, and supports rapid organizational change without increasing risk." - VectorUSA
RBAC and secure integration offer a framework that supports app development while preserving the integrity of legacy systems. Start with a thorough access review and align roles with your business objectives. Use App Roles during development to maintain consistency across environments, and prioritize API connections to gain better visibility into data activity. Notably, 80% of organizations report that RBAC enhances their ability to meet regulatory compliance requirements.
FAQs
How does Role-Based Access Control (RBAC) enhance security for legacy systems within corporate firewalls?
Role-Based Access Control (RBAC) strengthens security by tying permissions directly to user roles. This ensures employees can access only the data and systems they need to perform their jobs, reducing the chances of unauthorized access, accidental data leaks, or deliberate misuse.
With RBAC in place, organizations can better safeguard sensitive information, even in older systems or highly regulated industries. It streamlines user management, limits security gaps, and protects data integrity - all while enabling secure no-code app development within corporate firewalls.
What are the best practices for connecting legacy systems with modern applications?
To effectively link legacy systems with modern applications, it's crucial to embrace strategies that prioritize secure and efficient integration without requiring a complete overhaul of older infrastructure. One key approach is using middleware solutions, which act as a bridge to connect outdated systems with current tools. Middleware can manage missing APIs, streamline data exchanges, and address security vulnerabilities, simplifying the integration process.
Another important step is deploying Role-Based Access Control (RBAC) to manage user permissions. With RBAC, you can assign roles and enforce uniform access policies across all systems, ensuring both security and compliance, even in intricate setups.
Lastly, adopting modern security frameworks like Zero Trust can add an extra layer of protection to legacy systems. This approach incorporates tools such as API gateways, multi-factor authentication (MFA), and token-based access controls. These measures enhance security while allowing legacy systems to coexist with modern applications effectively.
How can businesses maintain compliance while using RBAC for secure app development?
To stay aligned with RBAC requirements during app development, businesses should prioritize establishing well-defined roles and permissions, performing regular audits, and following regulations like HIPAA, SOC 2, or CJIS. RBAC promotes accountability by assigning access strictly based on job roles, minimizing the chances of unauthorized data access.
Keeping roles current is key. Automating role assignments and removals with identity management tools can streamline this process, while maintaining accurate user records ensures consistency. Regularly reviewing access levels and documenting policies not only enhances security but also simplifies compliance audits. Together, these steps help businesses build secure apps while adhering to necessary regulatory frameworks.
